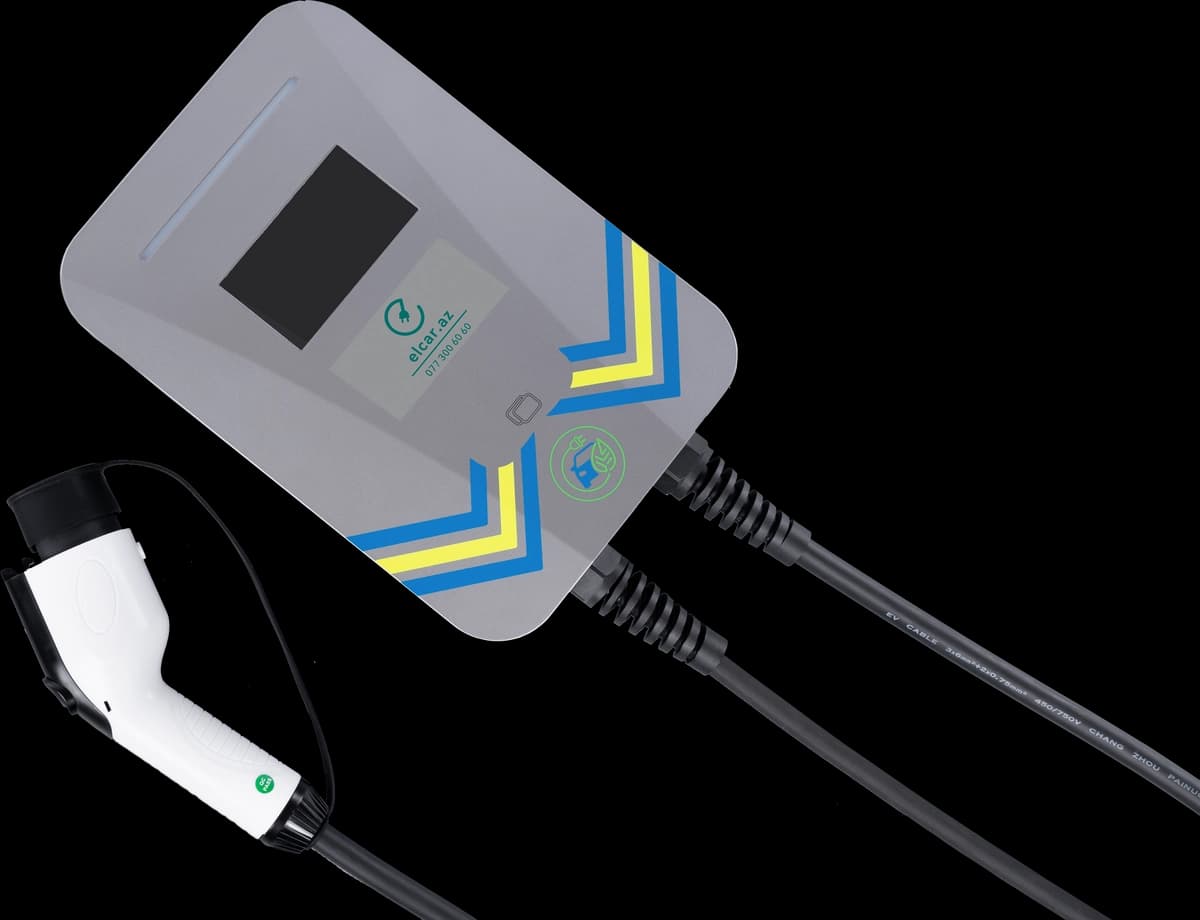

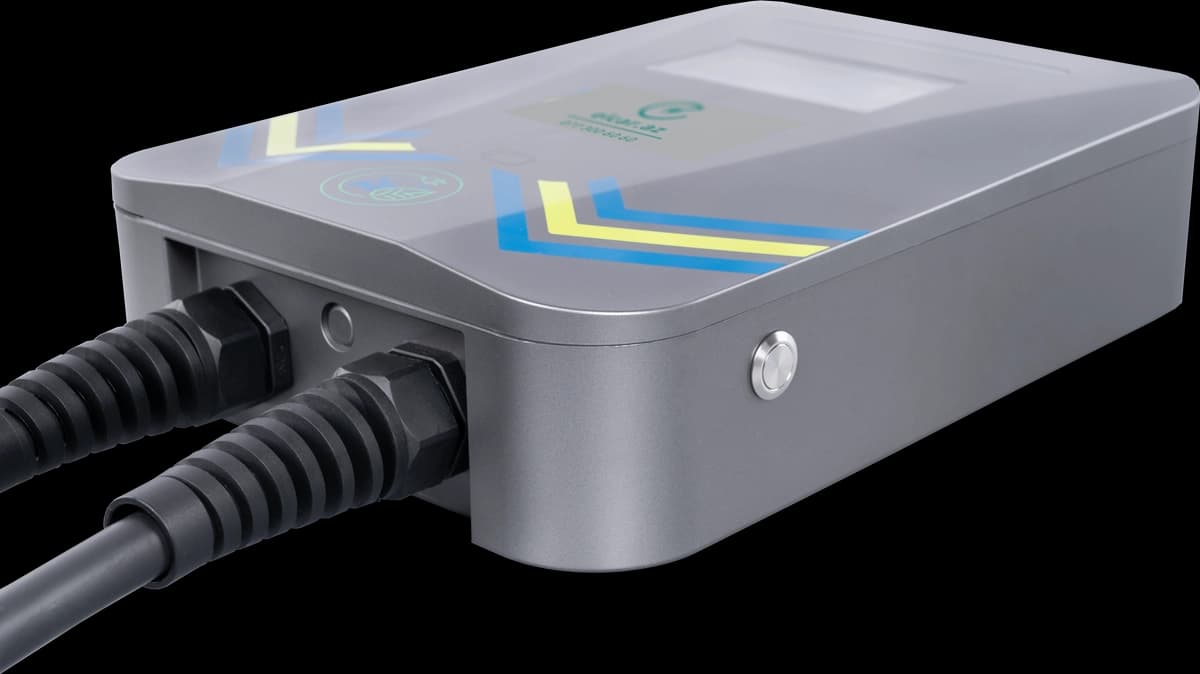

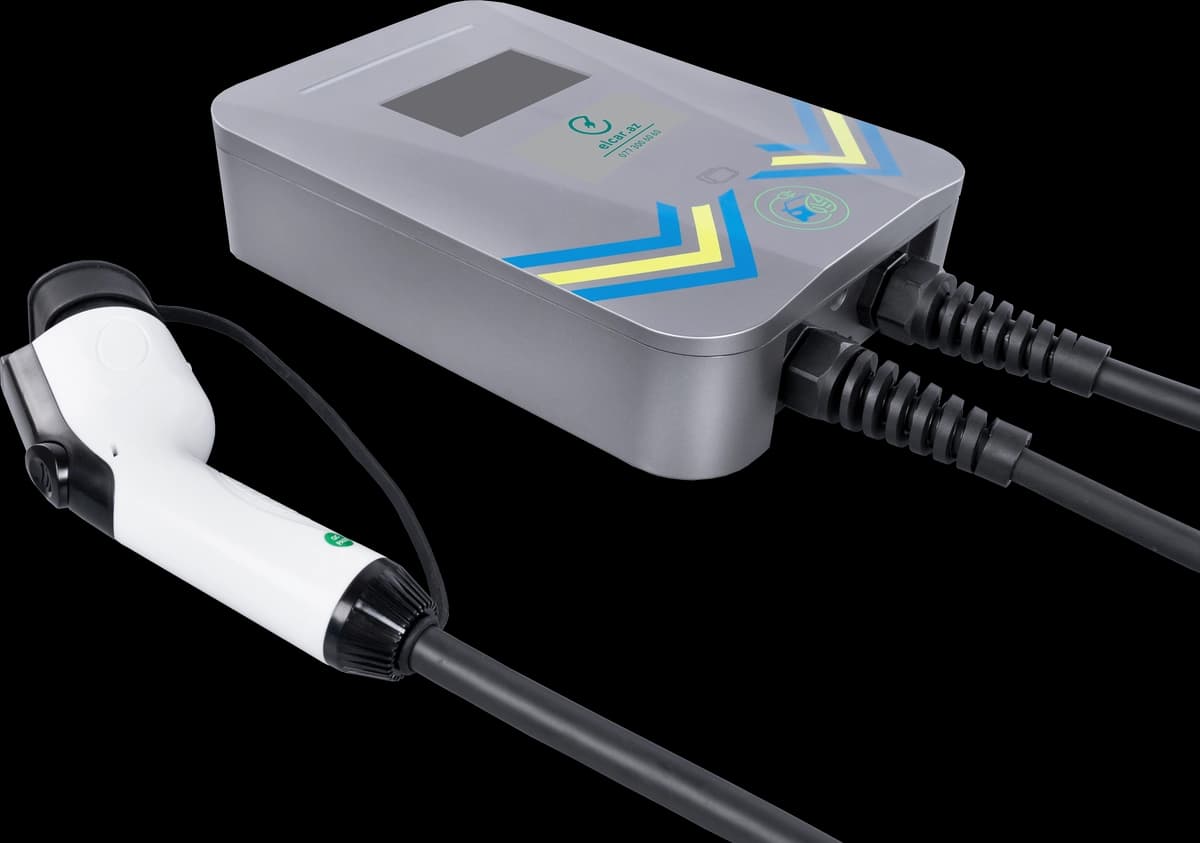

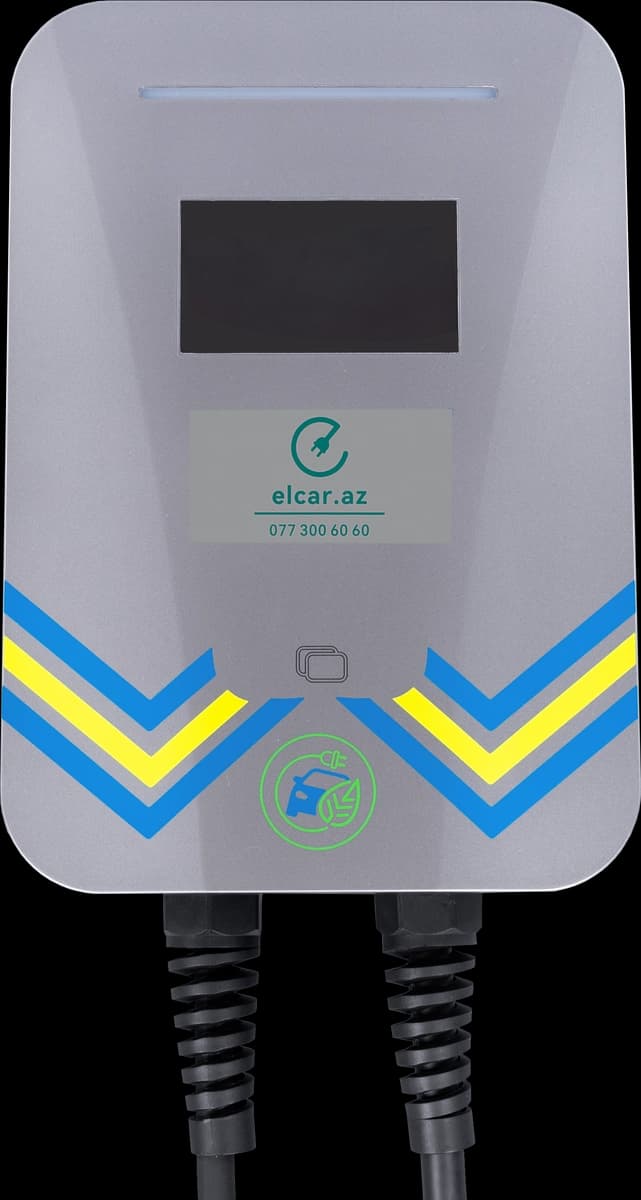

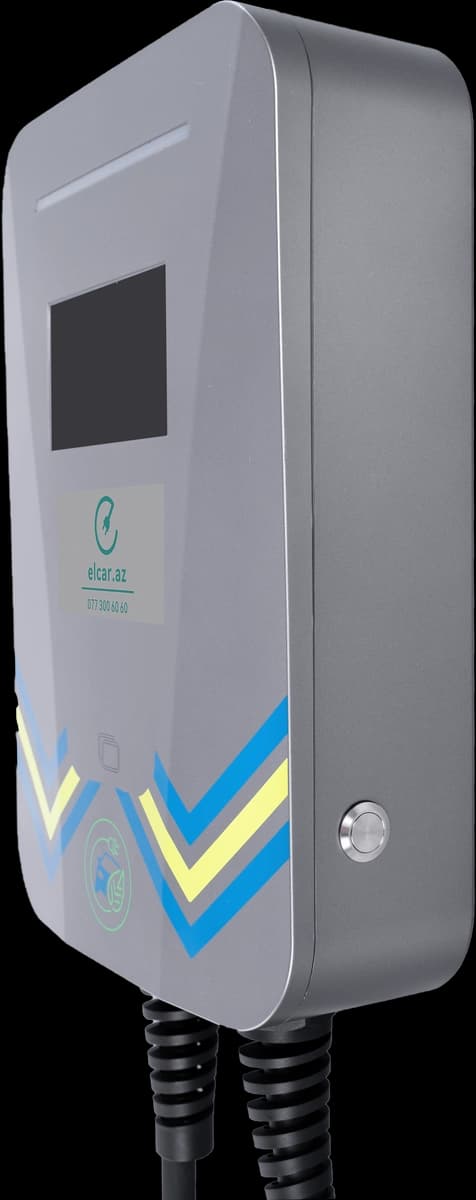

INJET CAAT007K1
CAAT007K1 AC 7kW is a high-tech battery charger designed to quickly and safely charge an electric vehicle battery with low power consumption.
Power Specification
CAAT007K1 charger has a high capacity, which allows you to charge the battery of an electric vehicle in the shortest possible time. This is especially important for drivers who want to quickly charge their car and continue on their way.
| Connector type : | GBT/AC |
|---|---|
| Output current: | 32 A |
| Output power : | 7 kW |
| Power input: | 230 V |
| Phase number : | 1 Phase |
User Interface & Control
CAAT007K1 charger has several charging modes, including fast charging and slow charging, which allows you to select the optimal charging mode depending on the condition of the battery. This allows you to increase battery life and reduce energy costs.
| Communication interface: | Wi-Fi (2.4 GHz), Ethernet (RJ-45) |
|---|---|
| Indicators: | ✔ Yes |
| Display: | ✔ Yes |
| Charging control : | APP, RFID Card, Plag & Play |
Environmental
CAAT007K1 charger is equipped with a protection system against overload, short circuit, overheating and other emergencies. This ensures charging safety and protects the battery from damage.
| Altitude : | 2000 m |
|---|---|
| Operating humidity : | 95 % |
| Operating temperature : | -30 +55 C |
| Storage temperature : | -40 +75 C |
Protection
CAAT007K1 charger is compatible with many models of electric vehicles from various brands and manufacturers. This allows it to be used to charge a variety of vehicles and ensures the versatility of the device.
| Emergency Stop: | ✔ Yes |
|---|---|
| Ground protection : | ✔ Yes |
| Leakage protection : | ✔ Yes |
| Power line protection : | ✔ Yes |
| OverLoad protection : | ✔ Yes |
| Short circuit protection : | ✔ Yes |
| IP Code : | IP65 |
Wall box mechanical
CAAT007K1 charger has a simple and intuitive interface that makes it easy to use for both experienced users and novices.
| Enclosure Material : | Tempered glass, Metal plate |
|---|---|
| Charging Cable Length: | 5 m |
| Weight : | 9 kg |
| Dimension (HxWxD, mm) : | 410x260x140 mm |
