INJET HM10332GD

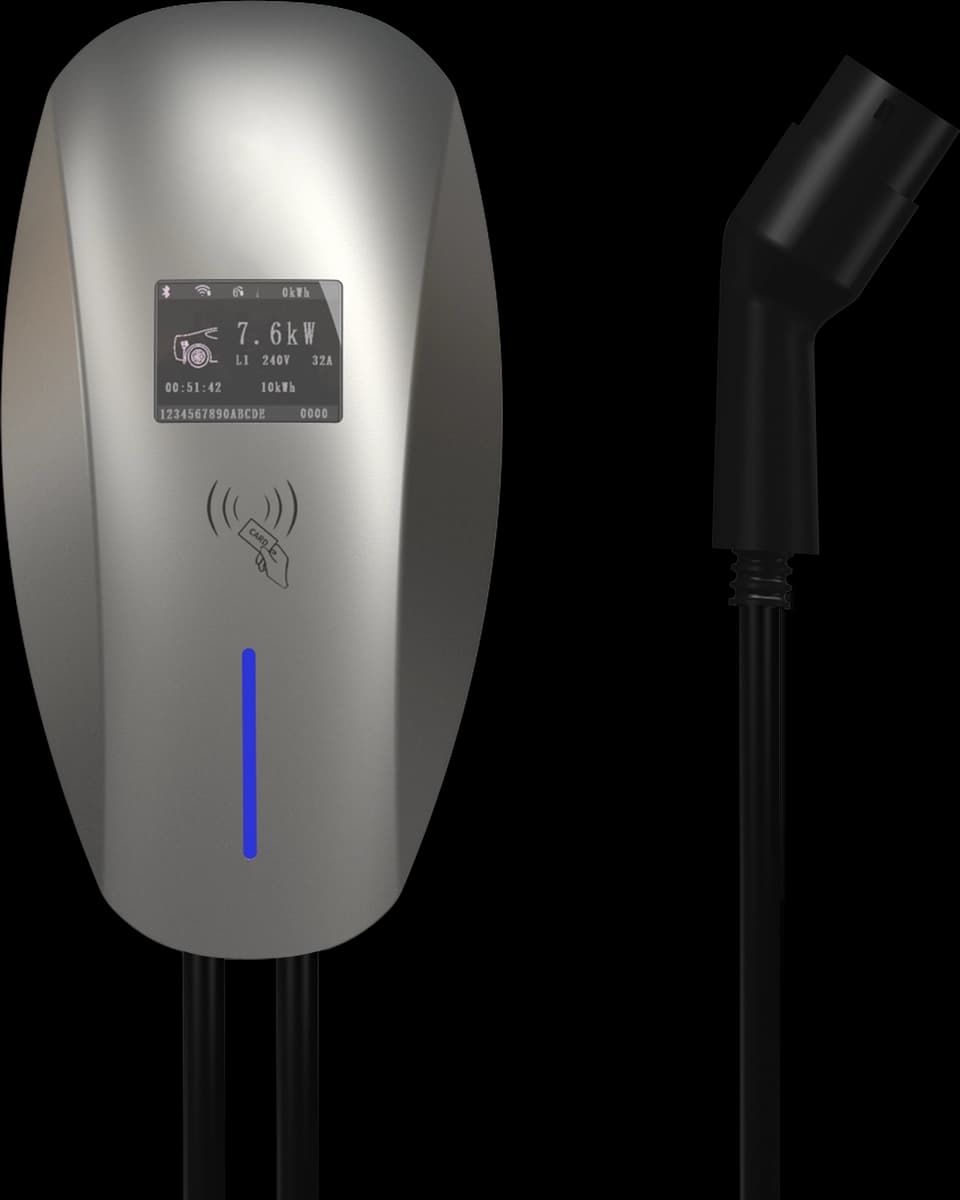

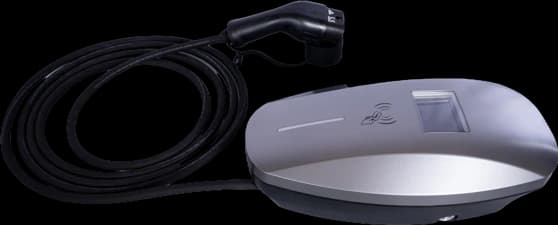

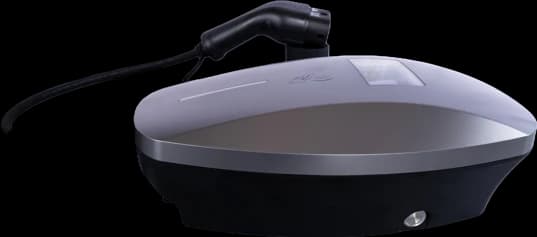

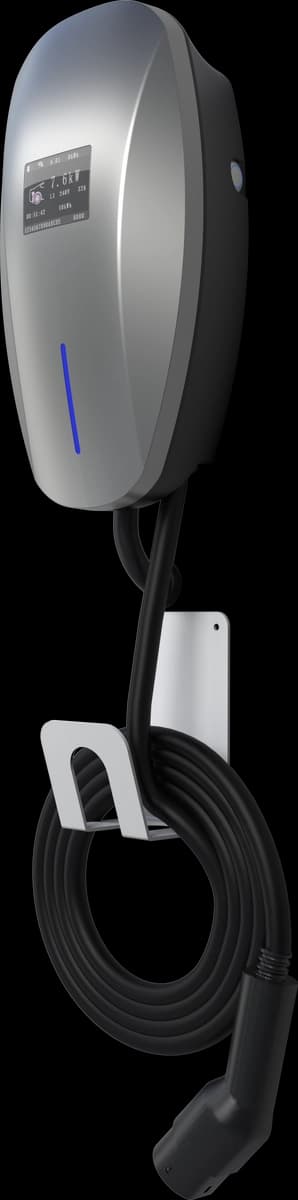

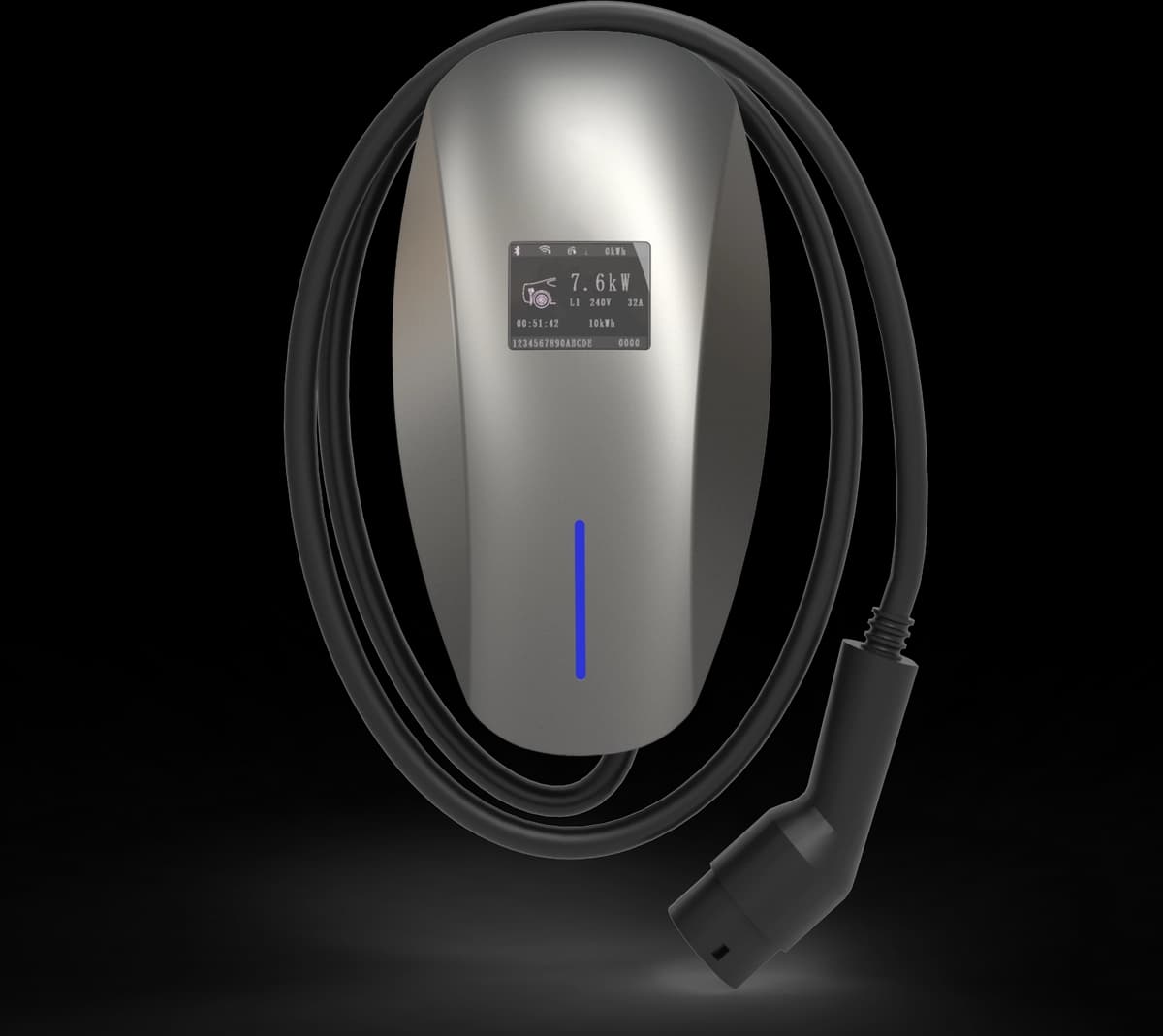

HM10332 charger is a compact and efficient electric vehicle charger that allows you to quickly and conveniently charge your vehicle batteries.
Power Specification
One of the key features of the HM10332 charger is its high power, which allows you to charge various types and capacities of electric vehicle batteries. The device also features overload and short circuit protection to ensure safety during charging.
| Connector type : | GBT/AC |
|---|---|
| Output current: | 32 A |
| Output power : | 22 kW |
| Power input: | 400 V |
| Phase number : | 3 Phase |
User Interface & Control
The HM10332 charger has a simple and intuitive interface that allows you to select the desired charging mode quickly and easily. After connecting the device to the battery of an electric vehicle, charging starts automatically.
| Communication interface: | Bluetooth, Wi-Fi (2.4 GHz) |
|---|---|
| Indicators: | ✔ Yes |
| Display: | ✔ Yes |
| Charging control : | APP, RFID Card, Plag & Play |
Environmental
The device is compatible with most types of electric vehicles, including hybrid and all-electric vehicles. The compact size and light weight of the charger make it easy to carry and use anywhere.
| Altitude : | 2000 m |
|---|---|
| Operating humidity : | 95 % |
| Operating temperature : | -30 +50 C |
| Storage temperature : | -40 +75 C |
Protection
The HM10332 charger also comes with a 12 month warranty and provides a high level of quality and reliability. If you have any questions or problems with the device, you can always contact our customer support team to get the necessary assistance.
| Emergency Stop: | ✔ Yes |
|---|---|
| Ground protection : | ✔ Yes |
| Leakage protection : | ✔ Yes |
| Power line protection : | ✔ Yes |
| OverLoad protection : | ✔ Yes |
| Short circuit protection : | ✔ Yes |
| IP Code : | IP 65 |
Wall box mechanical
By choosing the HM10332 charger, you get a reliable and convenient tool for charging your electric vehicle batteries.
| Enclosure Material : | Plastic |
|---|---|
| Charging Cable Length: | 5 m |
| Weight : | 9 kg |
| Dimension (HxWxD, mm) : | 400x210x145 mm |
OEM customize options
Fast charging, ease of use and high safety make it the perfect choice for anyone who cares about their car and the environment.
| Length of charging cable: | ✖ No |
|---|---|
| User manual: | ✔ Yes |
| Logo on front panel : | ✔ Yes |
