INJET HN10332EN
The HN10332 charger is a high quality electric vehicle charger that is designed to quickly and efficiently charge the batteries of various types of electric vehicles.
Power Specification
One of the key features of the HN10332 charger is its high power, which allows you to charge high-capacity electric vehicle batteries in the shortest possible time. The device also features overload and short circuit protection to ensure safety during charging.

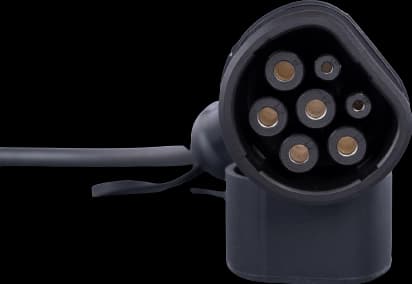

Connector type : | Type 2 |
---|---|
Output current: | 32 A |
Output power : | 22 kW |
Power input: | 400 V |
Phase number : | 3 Phase |
User Interface & Control
The HN10332 charger is very easy to use. The intuitive interface allows you to select the desired charging mode quickly and easily. After connecting the device to the battery of an electric vehicle, charging starts automatically.
Communication interface: | Bluetooth |
---|---|
Indicators: | ✔ Yes |
Display: | ✔ Yes |

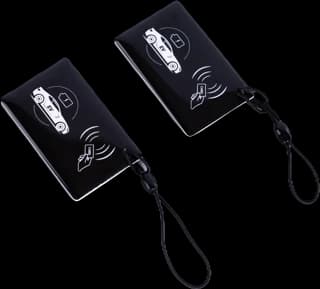

Charging control : | APP, RFID Card, Plag & Play |
Environmental
The HN10332 charger is very easy to use. The intuitive interface allows you to select the desired charging mode quickly and easily. After connecting the device to the battery of an electric vehicle, charging starts automatically.
Altitude : | 2000 m |
---|---|
Operating humidity : | 95 % |
Operating temperature : | -30 +55 C |
Storage temperature : | -40 +75 C |
Protection
The HN10332 charger is very easy to use. The intuitive interface allows you to select the desired charging mode quickly and easily. After connecting the device to the battery of an electric vehicle, charging starts automatically.
Emergency Stop: | ✔ Yes |
---|---|
Ground protection : | ✔ Yes |
Leakage protection : | ✔ Yes |
Power line protection : | ✔ Yes |
OverLoad protection : | ✔ Yes |
Short circuit protection : | ✔ Yes |
IP Code : | IP 65 |
Wall box mechanical
The device is compatible with most types of electric vehicles, including hybrid and all-electric vehicles, and has a compact size and light weight, making it easy to carry.
Enclosure Material : | Plastic |
---|---|
Charging Cable Length: | 5 m |
Weight : | 6 kg |
Dimension (HxWxD, mm) : | 180x180x65 mm |
OEM customize options
The HN10332 charger also comes with a 12 month warranty and provides a high level of quality and reliability. If you have any questions or problems with the device, you can always contact our customer support team to get the necessary assistance.
Length of charging cable: | ✖ No |
---|---|
User manual: | ✔ Yes |
Logo on front panel : | ✔ Yes |
