ELCAR

Electric Vehicles
5287₼3700.9₼-30%

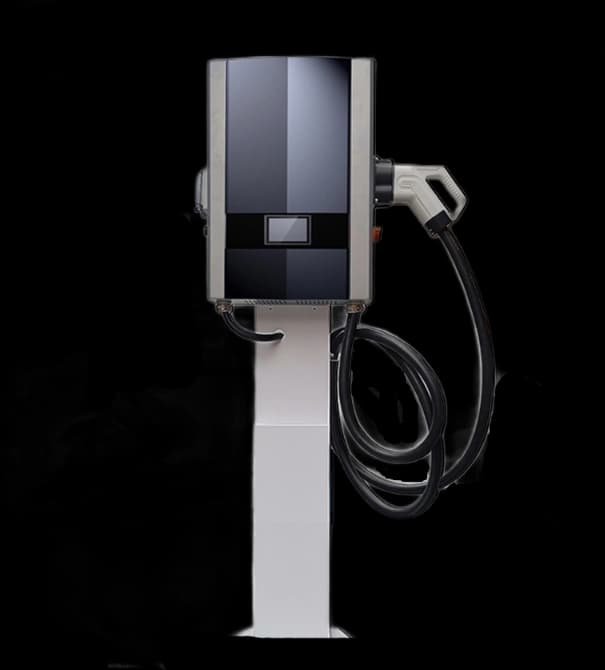

DC Stations ELCAR SC30750 30kW

DC Stations

ELCAR SC30750 30kW

DC Charger is an electronic device designed to charge electric vehicles. It has high power and provides direct current (DC) charging of the car.

  • Output power30 kW

  • Power input420 V

  • Phase number3 Phase

  • Rating

Power Specification

  • Ripple Factor≤ ±0.5 %

  • Output Current Error≤ ±1% %

  • Output Voltage Error±0.5 %

  • Current Stabilized Accuracy≤ ±1 %

  • Voltage Stabilized Accuracy±0.5 %

  • Peak E≥96 %

  • THD-I≤ 5 %

  • PF(Power Factor)>0.98

  • The Maximum Output Current33/60 A

  • DC Power Output Rating30 kW

  • DC Voltage Output200-750 VDC

  • Power Wiring3P+N+PE

  • Input vVoltage Range260-475/480 VAC

  • Input AC Power Rating

  • Connector type CCS 2, GBT/DC

  • Output power 30 kW

  • Power input420 V

  • Phase number 3 Phase

Power Specification

User Interface & Control

  • Communication interfaceEthernet (RJ-45), Wi-Fi (2.4 GHz)

  • IndicatorsYes

  • DisplayYes

  • Charging control APP, RFID Card

User Interface & Control

Environmental

  • Altitude ≤2000 m

  • Operating humidity 5-90% No condensation %

  • Operating temperature -20℃ to 50℃, derating output in 50℃ C

Environmental

Protection

  • Emergency StopYes

  • Ground protection Yes

  • Leakage protection Yes

  • Power line protection Yes

  • OverLoad protection Yes

  • Short circuit protection Yes

  • IP Code IP54

Protection

OEM customize options

  • Length of charging cableNo

  • User manualYes

  • Logo on front panel Yes

OEM customize options
